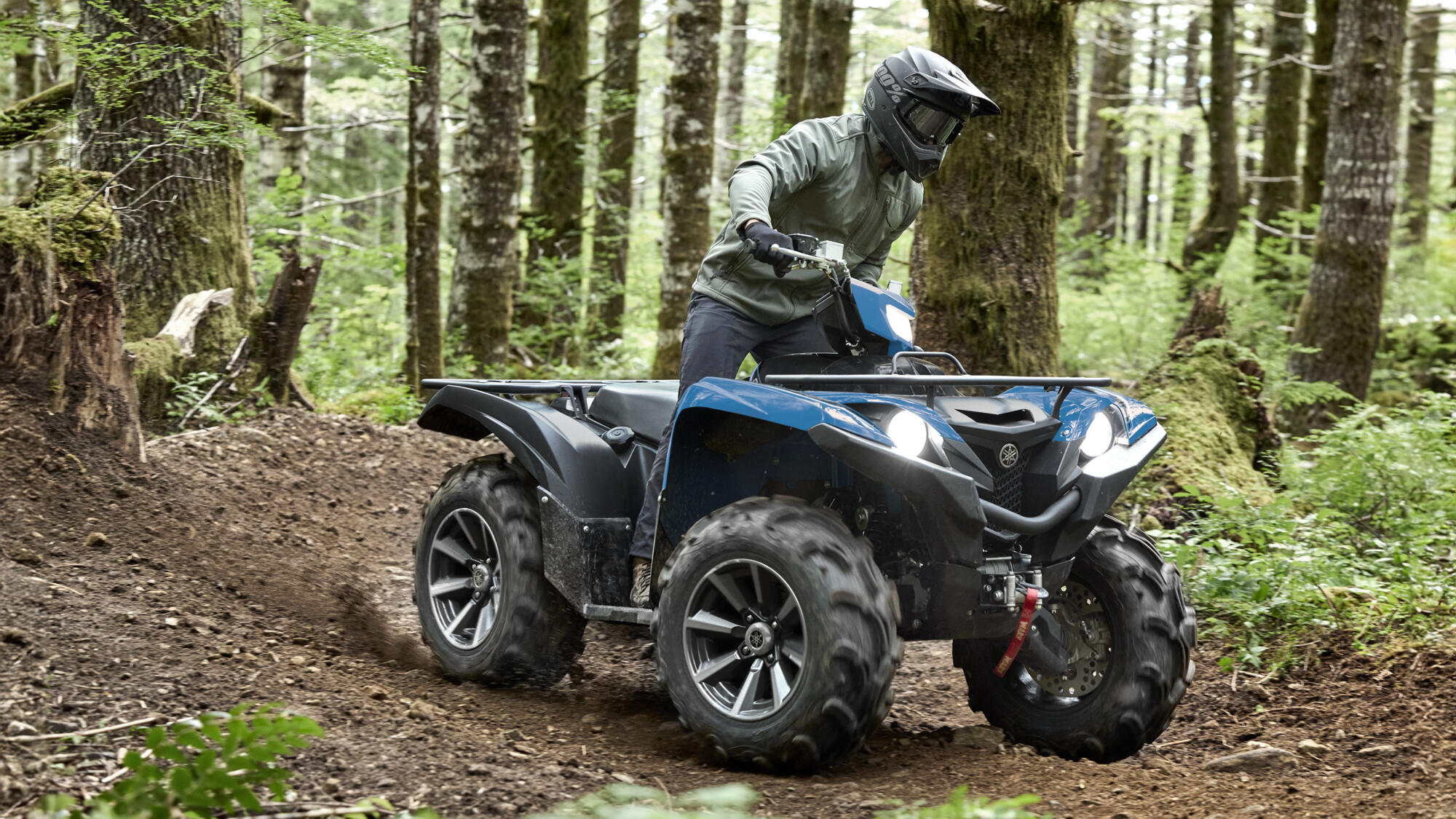

Yamaha Grizzly 700 EPS XT-R – Rugged 686cc ATV with Power Steering

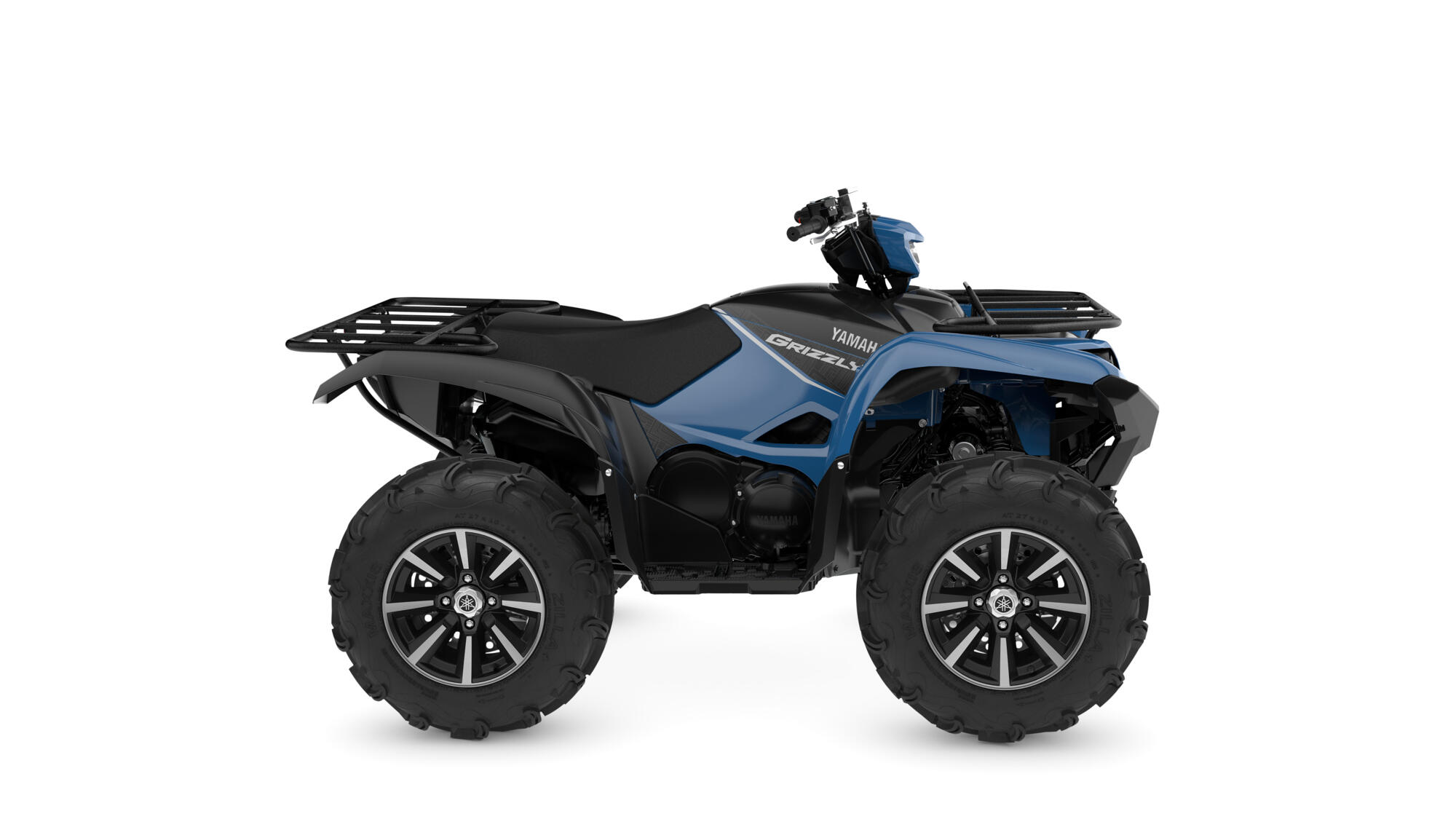

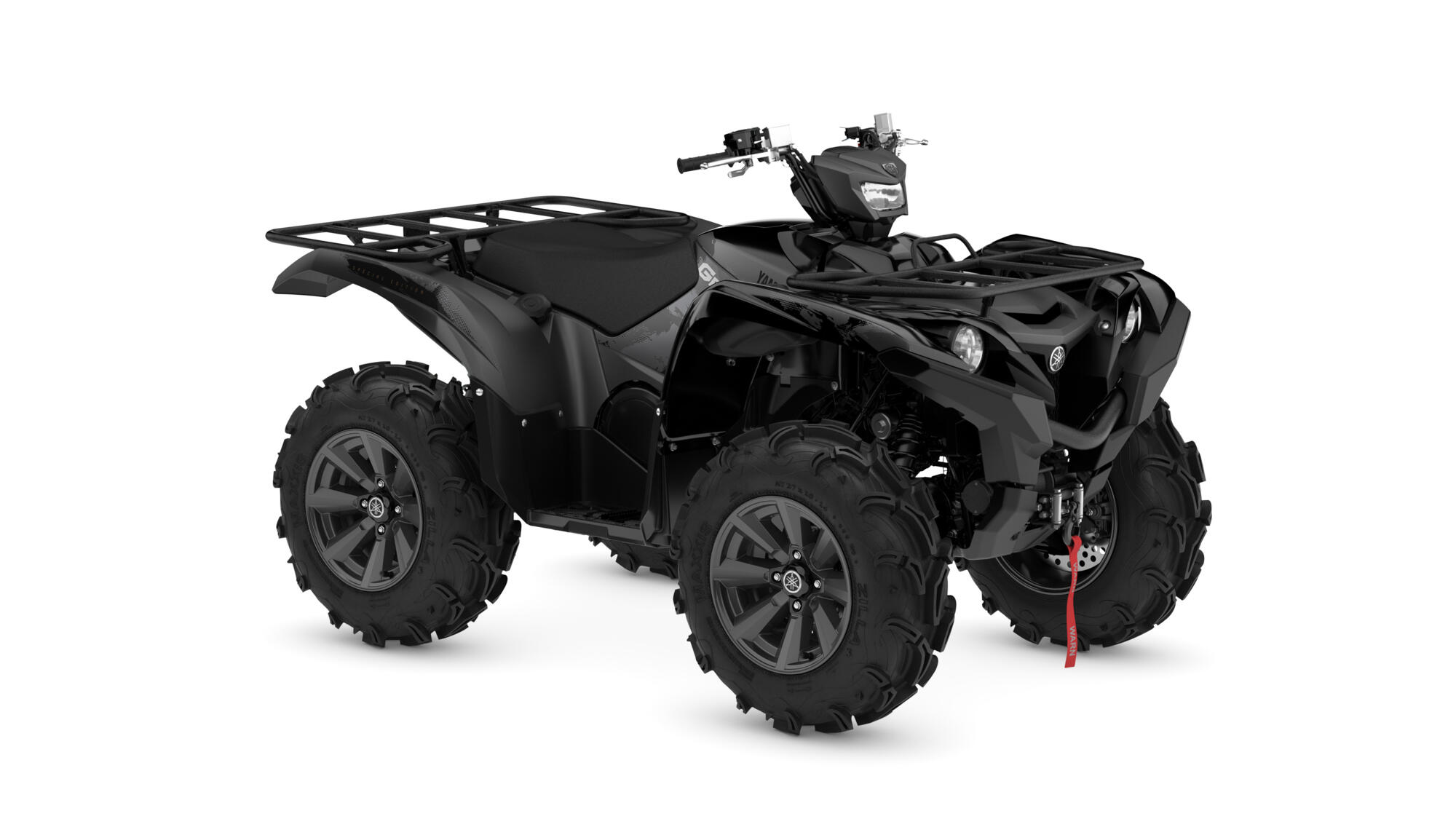

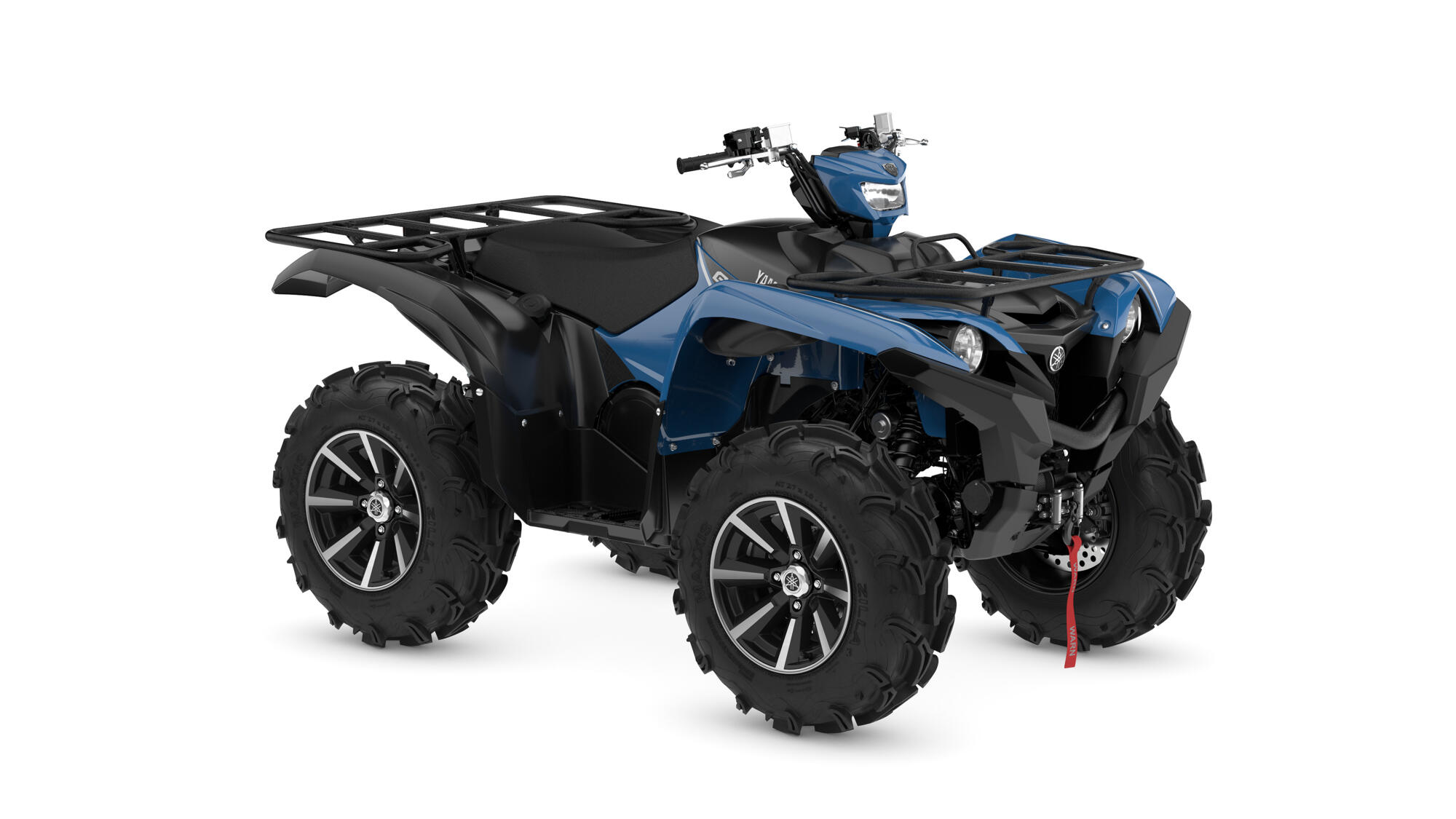

Grizzly 700 EPS XT-R

For all you #DRIVENBYFREEDOM enthusiasts who look for a
machine with unique touches, the Grizzly 700 EPS XT-R is the
Special Edition of our toughest, compact off road

Description

Yamaha’s industry-leading Ultramatic® transmission automatically selects the optimum gearing for all types of terrain, while the natural all-wheel engine braking gives huge confidence in downhill descents – and the On-Command® drive system allows you to switch seamlessly between 2WD, 4WD and Diff-lock at the push of a button.

Electronic Power Steering gives a natural feedback for enhanced comfort and control – and with its 4-wheel disc brake system and adjustable independent suspension, the super-tough Grizzly 700 EPS XT-R (Special Edition) is ready to take on the most challenging terrain. Discover this true force of nature.

Engine type	Single cylinder, Liquid-cooled, 4-stroke, SOHC, 4-valves
Displacement	686 cc
Bore x stroke	102.0 mm x 84.0 mm
Compression ratio	10.0 : 1
Lubrication system	Wet sump
Fuel system	Electronic Fuel Injection
Ignition system	TCI
Starter system	Electric
Transmission system	L/H/N/R/P, Ultramatic® V-belt with front- and rear wheel engine braking
Drive system	On-Command® 2WD/4WD/diff-lock
Final transmission	Shaft

Front suspension system	Independent double wishbone, 193 mm wheel travel, 5 position preload adjustment
Rear suspension system	Independent double wishbone, 232 mm wheel travel, 5 position preload adjustment
Front brake	Dual ventilated hydraulic disc
Rear brake	left hand/right foot operation, Ventilated hydraulic disc
Front tyres	Maxxis 27″ Zilla tires 27x 10-14, aluminium wheels
Rear tyres	Maxxis 27″ Zilla tires 27x 10-14, aluminium wheels

Overall length	2,070 mm
Overall width	1,230 mm
Overall height	1,253 mm
Seat height	930 mm
Wheelbase	1,253 mm
Minimum ground clearance	300 mm
Min. turning radius	3.5 m
Fuel tank capacity	18 litres
Oil tank capacity	2.6 litres
